Super Duplex Stainless Steel Flanges 254SMO A182 F44 UNS S31254 For Power Generation

Product Categories
Zhengzhou Huitong Pipeline Equipment Co.,Ltd.
Contact Now

Super Duplex Stainless Steel Flanges 254SMO A182 F44 UNS S31254 For Power Generation

  • 1
  • 2

Brand Name : HT

Model Number : EN 1.4547 254SMO

Certification : ISO API SGS BV,TUV,CE,ETC.

Place of Origin : China

MOQ : 1pc

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 10000000pcs per month

Delivery Time : 1~60days

Packaging Details : Wooden Case, or as requirements, Standard export seaworthy package, by wooden box, steel pallet or as per customers' requirement

Standard : ASME ANSI DIN JIS GB

Material : EN 1.4547 254SMO

Type : flanges Forging Shaft Discs Rings Tubesheet

Size : 1/2''~48''

Packing : Wooden Case, or as requirements, Standard export seaworthy package, by wooden box, steel pallet or as per customers' requirement

Application : Power generation, gas and oil pip, Pipe Tube Connection, Chemical and petrochemical, Industry

Pressure : CL150, Class150, Class150/300/600/900/1500 etc, 150#-2500#

Process : CNC Processing, Casting, forged

Surface treatment : Polishing, 125 AARH, Galvanized Etc, cnc machined

Sample : For free,Avaliable,but you need to pay for the freight charge for the samples

Contact Now

254SMO A182 F44 UNS S31254 Super Duplex Stainless Steel Flanges

1. About ASTM A182 Material standard

ASTM A182
/ASME SA182		 Standard Specification for Forged or Rolled Alloy-Steel Pipe Flanges, Forged Fittings, and Valves and Parts for High-Temperature Service
Low alloy Steels F1 F2 F5, F5a F5 F91
F92 F911 F11, 1,2,3 F12, 1,2 F36
F21, F3V, F3VCb F22, 1/3/V F23 F24 FR
F122 F10 F9
Martensitic and Ferritic Stainless steel F6a F6b F6NM F XM-27Cb F429
F430
Austenitic Stainless steel F304 F304H F304L F304N F304LN
F309H F310 F310H F310MoLN F316
F316H F316L F316N F316LN F316Ti
F317 S31727 S32503 F321 F321H
F347 F347H F347LN F348 F348H
FXM-11 FXM-19 F20 F44 F45
F46 F47 F48 F49 F56
F58 F62 F63 F64 F904L
Ferritic-Austenitic Stainless steel F 50 F 51 F 52 F 53 F 54
F 55 F 56 F 57 F 58 F 59
F60 F61 F65 F65 F67

2. Flange type Available in HT pipe

Standard Type Class Size
ASME B16.5 WN/LWN/SO/Blind/Lap Joint 150#-2500# 1/2"-24"(Except Blind Flange 2500lb 1/2"-12")
SW flange 150#-1500# 1/2"-3"(Except 1500# 1/2"-2 1/2")
Threaded 150#-900# 1/2"-24"
1500# 2500# 1/2"-2 1/2"
ASME B16.47 Series A WN/blind flange 150# -900# 22"-48"(Except 900# Size:26"-48")
ASME B16.47 Series B WN/blind flange 75#-300# 26"-48"
400# 600# 900# 26"-36"
DIN2527 Blind flange PN6-PN100 DN10-DN1000
DIN2543 SO flange PN16 DN10-DN1000
DIN2544 SO flange PN25 DN10-DN1000
DIN2545 SO flange PN40 DN10-DN500
DIN2565 Threaded flange with Neck PN6 DN6-DN200
DIN2566 Threaded flange with Neck PN16 DN6-DN150
DIN2567 Threaded flange with Neck PN25 PN40 DN6-DN150
DIN2568 Threaded flange with Neck PN64 DN10-DN150
DIN2569 Threaded flange with Neck PN100 DN10-DN150
EN1092-1:2002 Plate flange for welding/loose plate flange with weld-on plate collar or for lapped pipe end/Blind Flange/WN flange PN2.5-PN100 DN10-DN4000
JIS B2220 Welding flange, lap joint flange, threaded flange PN6-PN100 DN10-DN1500
BS4504 BS10 TableD/E Plate Flange for welding/WN flange/blank Flange PN6-PN100 DN10-DN1500
Other Products Anchor/swivel/girth/lap joint/reducing/orifice
Spectacle blind/paddle blind/spacer ring/orifice plate/bleed ring
Special Products: rings/forgings/disc/shaft sleeves

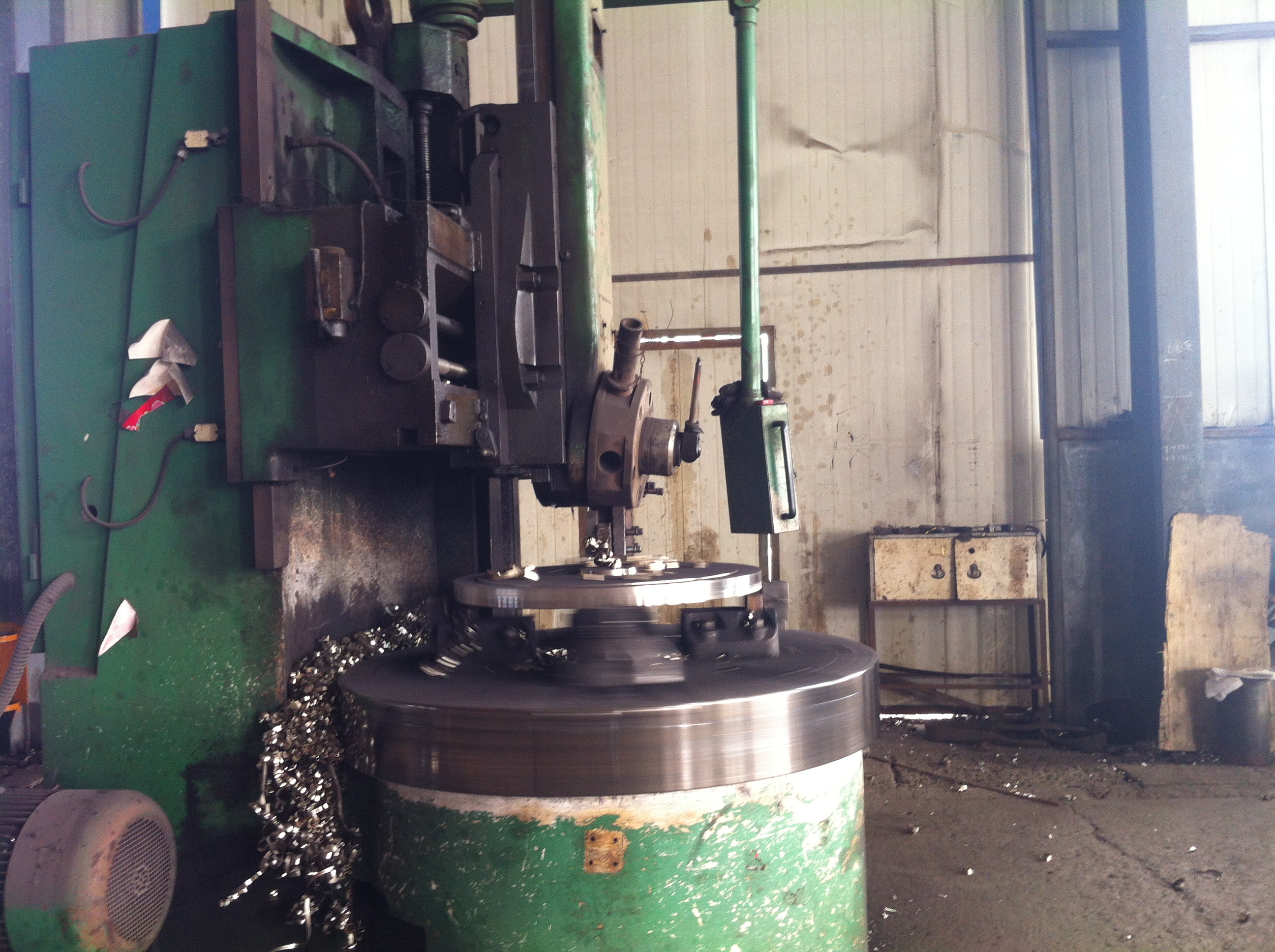

3. HT Maching show

Super Duplex Stainless Steel Flanges 254SMO A182 F44 UNS S31254 For Power Generation

4. Exhibition Inviation

Super Duplex Stainless Steel Flanges 254SMO A182 F44 UNS S31254 For Power Generation
