Power Generation Duplex Stainless Steel Flanges ASTM A182 F55 SO Forged Flange 150#

Product Categories
Zhengzhou Huitong Pipeline Equipment Co.,Ltd.
Contact Now

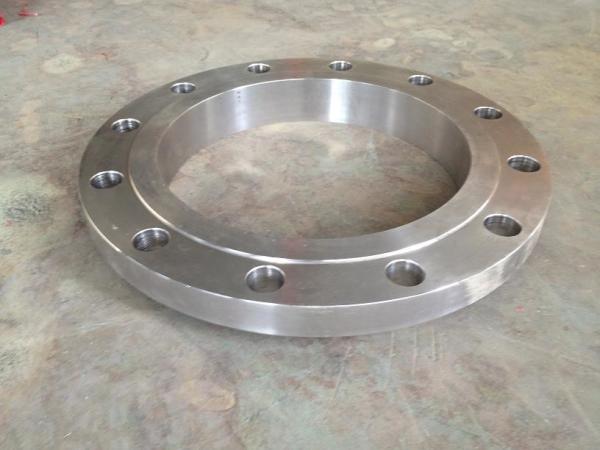

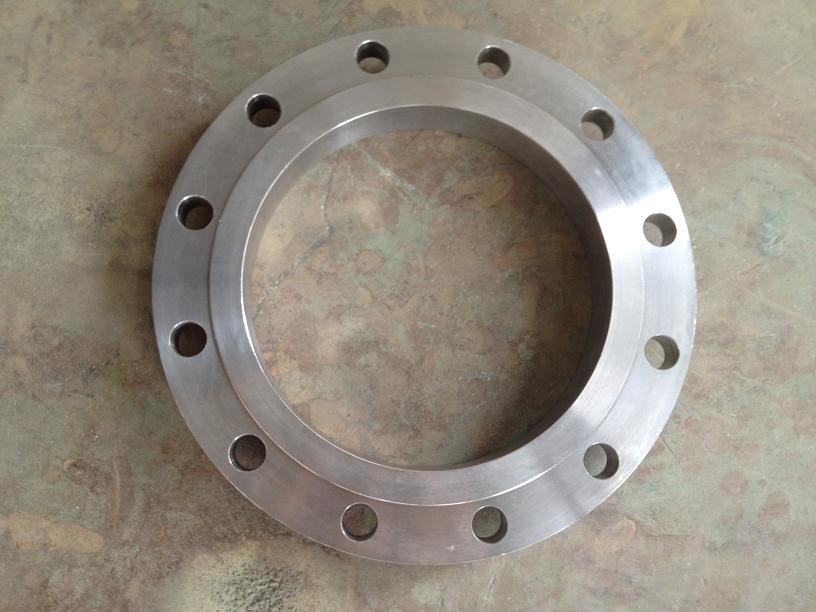

Power Generation Duplex Stainless Steel Flanges ASTM A182 F55 SO Forged Flange 150#

  • 1
  • 2

Brand Name : HT

Model Number : Duplex Steel F55

Certification : ISO API SGS BV,TUV,CE,ETC.

Place of Origin : China

MOQ : 1pc

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 10000000pcs per month

Delivery Time : 1~60days

Packaging Details : Wooden Case, or as requirements, Standard export seaworthy package, by wooden box, steel pallet or as per customers' requirement

Standard : ASME ANSI DIN JIS GB

Material : Duplex Steel F55

Type : SO Flange

Size : 1/2''~48''

Packing : Wooden Case, or as requirements, Standard export seaworthy package, by wooden box, steel pallet or as per customers' requirement

Application : Power generation, gas and oil pip, Pipe Tube Connection, Chemical and petrochemical, Industry

Pressure : CL150, Class150, Class150/300/600/900/1500 etc, 150#-2500#

Process : CNC Processing, Casting, forged

Surface treatment : Polishing, 125 AARH, Galvanized Etc, cnc machined

Sample : For free,Avaliable,but you need to pay for the freight charge for the samples

Contact Now

Duplex Stainless Steel ASTM A182 F55 SO Flange Forged Flange 150#

1. Slip-On Flanges

Slip-On flanges or SO flanges are commonly lower in price than weld-neck flanges, and to this effect are a popular choice for our customers. However, customers should bear in mind that this initial cost saving may be diminished by the additional cost of the two fillet welds required for proper installation. Moreover, weld-neck flanges have a higher life expentancy than slip-on flanges under duress.

The slip-on flange is positioned so the inserted end of the pipe or fitting is set short of the flange face by the thickness of the pipe wall plus 1/8 of an inch, which thus allows for a fillet weld inside the SO flange equal without doing any damage to the flange face. The back or outside of the

slip-on flange or SO flange is also welded with a fillet weld.

2. Super Duplex Steel S32750 Pipe Flanges Specifications

Super Duplex Steel S32750 Pipe Flanges Specifications
Specifications : ASTM A182 / ASME SA182
Size : 1/8″ NB TO 24″ NB
Standards : ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.
Class / Pressure : 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.
Standard : ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.
Grades : S32750 / S32760 / S32950

3. Super Duplex Steel S32750 / S32760 Pipe Flanges Chemical Composition

Grade C Mn Si P S Cr Mo Ni N Fe
S32750 0.030 max 1.20 max 0.80 max 0.035 max 0.020 max 24.00 – 26.00 3.00 – 5.00 6.00 – 8.00 0.24 – 0.32 58.095 min
S32760 0.05 max 1.00 max 1.00 max 0.030 max 0.010 max 24.00 – 26.00 3.00 – 4.00 6.00 – 8.00 0.20 – 0.30 57.61 min

4. Super Duplex Steel S32750 / S32760 Plate Flanges Mechanical Properties

Grades Density (g/cm 3) Density (lb/in 3) Melting Point (°C) Melting Point (°F)
S32750 / S32760 7.8 0.281 1350 2460

5. Equivalent Grades for S32750 / S32760 Super Duplex Steel Industrial Pipe Flanges

STANDARD WERKSTOFF NR. UNS
Super Duplex 2507 1.4410 S32750 / S32760

6. Super Duplex Steel S32750 / S32760 Flanges Price List

S32750 Flanges
US $0.5-1000 / Piece (FOB Price)

Super Duplex Steel S32760 Pipe Flanges
US $300-500 / Ton (FOB Price)

Super Duplex Steel S32750 Weld Neck Flanges
US $1-900 / Piece (FOB Price)

ASTM A182 S32750 duplex stainless steel plate flanges
US $0.5-1000 / Piece (FOB Price)

S32760 Super Duplex Steel Pipe Flanges
US $1-300 / Piece (FOB Price)

7. Material Testing:
We at HT Pipe Corporation ensure that all our materials go through strict quality tests before dispatching them to our clients.

• Mechanical Testing Such as Tensile of Area
• Hardness Test
• Chemical Analysis – Spectro Analysis
• Positive Material Identification – PMI Testing
• Flattening Test
• Micro and MacroTest
• Pitting Resistance Test
• Flaring Test
• Intergranular Corrosion (IGC) Test

Power Generation Duplex Stainless Steel Flanges ASTM A182 F55 SO Forged Flange 150#
